Cylindrical weight with hook(s)

IMG_2143-1

PICT0098

Features
Applications
  • Any kind of dynamical measurements.
Max. permissible error
  • Class M1 based on OIML R111
Material
  • Non-magnetic stainless steel

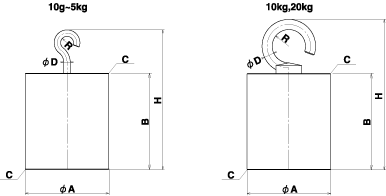

Weight dimensions for cylindrical weight with upper hook

cyl(f1)2-drawing

Nominal value
A
B
C
D
H
R
20kg145mm154mm0.5mm8mm195mm13mm
10kg112mm129mm0.5mm6mm162mm10mm
5kg90mm102mm0.5mm6mm137mm6mm
2kg65mm78mm0.5mm4mm105mm4mm
1kg52mm60mm0.5mm4mm87mm4mm
500g42mm47mm0.5mm4mm74mm4mm
200g31mm33mm0.5mm3mm52mm3mm
100g25mm26mm0.5mm3mm45mm3mm
50g20mm20mm0.2mm3mm39mm3mm
20g15mm14mm0.2mm2mm27mm3mm
10g13mm9mm0.2mm2mm22mm3mm

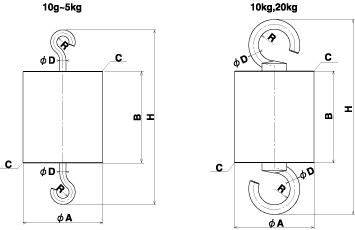

Weight dimensions for cylindrical weight with upper/lower hooks

cyl(f2)2-drawing

Nominal value
A
B
C
D
H
R
20kg145mm154mm0.5mm8mm237mm13mm
10kg112mm129mm0.5mm6mm196mm10mm
5kg90mm101mm0.5mm6mm169mm6mm
2kg65mm77mm0.5mm4mm131mm4mm
1kg52mm59mm0.5mm4mm113mm4mm
500g42mm46mm0.5mm4mm100mm4mm
200g31mm32mm0.5mm3mm70mm3mm
100g25mm25mm0.5mm3mm63mm3mm
50g20mm19mm0.2mm3mm57mm3mm
20g15mm14mm0.2mm2mm40mm3mm
10g13mm8mm0.2mm2mm34mm3mm

Price list

Nominal value
Cylindrical weight with upper hook
Cylindrical weight with upper/lower hooks
case
20kg¥160,000¥201,000
10kg¥101,000¥126,000
5kg¥58,000¥72,000
2kg¥32,000¥39,000
1kg¥18,000¥23,000
500g¥14,000¥17,000
200g¥12,000¥15,000
100g¥10,000¥12,000
50g¥9,000¥11,000
20g¥8,000¥9,000
10g¥8,000¥9,000
